Solar Panel Technologies- 2025

Below, we outline the key solar panel technologies considered in this study

Bifacial Glass–Glass (TOPCon / HJT)

Bifacial glass–glass modules use n-type Tunnel Oxide Passivated Contact ( TOPCon) or Heterojunction (HJT) cells laminated between two sheets of glass and produce power from both the front and rear sides. Typical commercial front-side efficiencies are around 22–23.5% , with rear-side gains adding approximately 5–30% extra annual energy yield in suitable sites [1–4].

Advantages:

• Higher energy yield: rear-side gains can increase annual production by about 5–30% compared with monofacial modules in high-albedo (reflective) sites [1, 2].
• Durable glass–glass construction: reduced moisture ingress and mechanical stress enable long lifetimes (> 30 years ) and low degradation rates [1, 13, 14].
• High front-side efficiency: commercial bifacial TOPCon/HJT modules commonly reach 22–23.5% efficiency [2–4].

Disadvantages:

• Higher weight: dual glass significantly increases module mass, which can challenge some rooftop and tracker designs [13, 14].
• Site-dependent benefit: limited rear irradiance (dark ground, dense row spacing) strongly reduces the bifacial gain [1, 2].
• Slight cost premium and design complexity require more detailed reflective power, spacing and mounting optimization than monofacial systems.

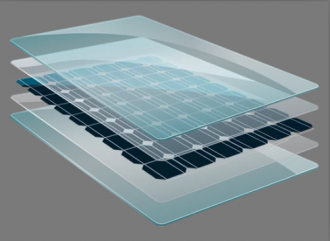

Glass–Glass Monofacial

Glass–glass monofacial modules retain the dual-glass laminate but generate electricity only from the front. They focus on robustness and low degradation, typically using high-efficiency TOPCon or HJT cells with commercial module efficiencies of about 21–23% [3, 4, 13, 14].

Advantages:

• Enhanced reliability: dual glass improves resistance to moisture, UV and mechanical loads, reducing long-term degradation [13–15].
• Long warranties: many products carry 30-year performance guarantees with around 0.25–0.4%/year degradation [13, 14].
• Good pairing with n-type cells supports long-lived TOPCon/HJT designs for premium rooftops and commercial systems [3, 4].

Disadvantages:

• Higher weight: similar mass penalty to bifacial glass–glass, which may exceed allowable roof loads on older buildings [13].
• No bifacial gain: customers pay a small glass–glass premium without rear-side power generation.
• Slight capital expenditure (CAPEX) premium: meaning the cost per watt is slightly higher than the bifacial module, and later the cost gap is narrowing [13].

Note:  Glass–glass refers to the module's construction (glass on both sides), whereas bifacial refers to the cells' ability to harvest light from both the front and rear. Many bifacial modules use a glass–glass design, but not all glass–glass modules are necessarily bifacial.

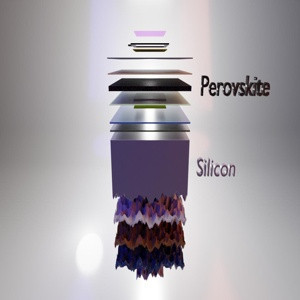

Perovskite–Silicon Tandem Panels

Perovskite–silicon tandem panels stack a wide-bandgap perovskite top cell on a silicon bottom cell to surpass the single-junction efficiency limit. Early commercial and pilot modules achieve roughly 23–25% efficiency, with record panels around 26–27% [2, 6–8], [16].

Advantages:

• Very high efficiency potential: tandem modules already reach about 25% , and cell records approach 30% [2, 6–8].
• Higher power density: roughly 20% more power per square meter compared with typical 21–23% silicon modules, reducing area and balance of system (BOS) costs [2, 6–8] .
• Thin and design-flexible: perovskite layers can be very thin and potentially colored or semi-transparent, enabling advanced Building Intergrated Photovoltaics (BIPV) concepts [8].

Disadvantages:

• Stability and lifetime not yet proven, current tandems target shorter (~ 10–20 years ) lifetimes than mature silicon modules [2, 8].
• Lead and encapsulation concerns: most high-efficiency perovskites use lead, requiring robust encapsulation and end-of-life management [8].
• High cost and limited availability: pilot-scale production keeps prices well above mainstream silicon, often more than 2–3× in €/W terms [2, 6–8].

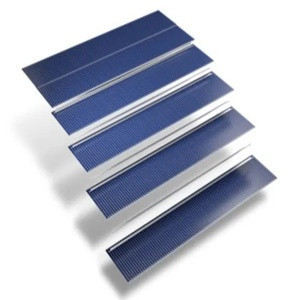

Shingle Modules

Shingled modules cut cells into overlapping strips connected with conductive adhesive, eliminating front busbars and increasing active area. Commercial shingled modules typically reach about 20.5–22% ; premium variants can approach 23% [2, 10, 15].

Advantages:

• Higher power density: overlapping strips reduce inactive areas and busbar shading, improving light absorption and thereby module efficiency [10, 15].
• Better shade tolerance: many small parallel strips maintain power output when part of the panel is shaded [10, 15].
• Clean aesthetics: uniform, often all-black appearance is attractive for residential roofs [15].

Disadvantages:

• More demanding manufacturing: laser cutting and adhesive application add cost and potential failure modes [10].
• Edge and adhesive degradation risks: Poor process control can lead to long-term performance loss [10].
• Still a niche versus half-cut: half-cut, multi-busbar modules remain cheaper and more common in volume markets.

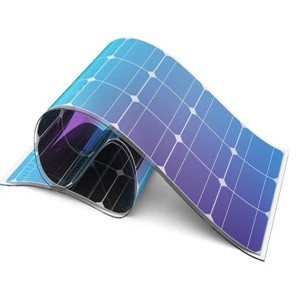

Flexible Thin-Film (CIGS / Perovskite)

Flexible thin-film laminates use Copper-Indium-Gallium-Selenide (CIGS) or perovskite absorbers on polymer, metal foil or ultra-thin glass substrates. Commercial flexible CIGS modules typically achieve  efficiencies of about  15–18% and the  weight can be as low as 3 kg/m² ; lab cells and tandems have reached even higher values ​​[9–11].

Advantages:

• Ultra-light and flexible: ideal for weak roofs, vehicle bodies, tents, curved façades and portable devices [9–11].
• Competitive thin-film efficiencies: flexible CIGS records around 18.7% , and flexible perovskite–CIGS tandems have exceeded 18–20% in mini-modules [9, 10].
• New application spaces: enable PV where rigid glass modules are too heavy or cannot conform to the surface [9–11].

Disadvantages:

• Lower efficiency than rigid n-type silicon: Commercial flexible modules (often  10–18% ) lag behind modern rigid panels ( 21–24% ) [11].
• Higher cost per watt: Because these panels are made in smaller quantities and for special uses, they can cost several times more per watt than standard silicon panels [11].
• Durability challenges: bending, moisture and perovskite stability demand advanced barrier and encapsulation solutions [8–11].

Multi-Busbar ( MBB) Tiling Ribbon Panels

MBB tiling ribbon panels combine multi-busbar (MBB) interconnection with tiling ribbon, which eliminates gaps between cells by slightly overlapping or tightly butting the cell edges. In commercial n-type products, typical module efficiencies are around 21–22.5% for standard formats [2, 9, 13–15].

Advantages:

• Higher module efficiency: eliminating cell gaps and using many thin busbars increases active area and can boost panel power by about 2–4% compared with conventional ribbon layouts using the same cells [2, 3, 9, 13–15].
• Reduced resistive and optical losses: multi-busbar layouts shorten current paths and reduce shading; MBB can absorb roughly 0.3–0.5% more light and cut resistive losses by 30–50% [1, 4, 5, 15].
• Lower silver consumption and mechanical robustness: many thin wires and tiling help distribute stress, reduce micro-crack losses and lower silver paste use per watt [2, 4, 13–15].

Disadvantages:

• More complex stringing and layup tiling ribbon and dense MBB wiring require precise alignment and process control, raising manufacturing complexity [9, 13–15].
• Potential edge-related reliability issues, close or overlapping cell edges, can be sensitive to thermal cycling and mechanical stress if encapsulation is poor [9, 13].
• Moderate cost premium versus simple 5BB half-cut designs, although gains in efficiency and lower silver usage offset part of the extra cost [2, 4, 13–15].

Solar Panel Comparison

Technology	Explanation	Commercial Efficiency	Structural Notes	Cost Level
Bifacial Glass–Glass (TOPCon/HJT)	Captures sunlight from both sides; Boosts annual energy yield;	~22–23.5%.	Glass–glass laminate with bifacial TOPCon/HJT cells.	High-efficiency price band (~0.11–0.13 €/Wp)
Glass–Glass Monofacial	Strong durability; Front-side generation only; long lifetime	~21–23%.	Dual-glass construction improves moisture, UV and mechanical resistance.	Mainstream to slightly higher (~0.09–0.12 €/Wp)
Perovskite–Silicon Tandem Panels	Designed to exceed single-junction silicon limits; Targets maximum power density per m²	~23–25%.	Perovskite top cell laminated over silicon.	Strong premium pricing (often >2–3x mainstream €/W)
Shingle Modules	Reduces inactive and shaded areas;	~20.5–22%.	Overlapping cell strips joined with conductive adhesive	Slightly above standard module cost
Flexible Thin-Film (CIGS/Perovskite)	Flexible; Very lightweight; Good fit for curved or irregular surfaces	~15–18%.	Ultra-light, bendable structures;	Specialty high-€/W products;
MBB Tiling Ribbon Panels	Multi-busbar distribute current; Tiling ribbon removes gaps between cells; Raises module power without changing cell technology	~21–22.5%.	Half-cut or full cells with many thin busbars; high energy density.	Upper mainstream to high-efficiency tier.

Conclusion

In 2025, solar panel technology is moving decisively towards higher efficiency, longer lifetimes and more specialized applications. Bifacial(TOPCon/HJT), glass–glass, perovskite–silicon tandems and MBB tiling ribbon modules push commercial efficiencies above conventional p-type designs, while shingled and flexible thin-film panels unlock new formats for rooftops and lightweight structures. Although some of these technologies still carry a cost or reliability premium, ongoing scale-up and process optimization are expected to narrow the gap. Overall, the current generation of PV modules provides more energy per square meter, better long-term stability and greater design flexibility, reinforcing solar power as a core pillar of future low-carbon energy systems.

References

1. Kopecek, R., & Libal, J. (2021). Bifacial photovoltaics 2021: Status, opportunities and challenges. Energies, 14(8), 2076.

2. Svarc, J. (2025). Most efficient solar panels 2025. Clean Energy Reviews.

3. TaiyangNews. (2024). New Solar Modules Overview 2024.

4. TaiyangNews. (2023). Heterojunction Solar Technology - 2023 Edition.

5. Reuters. (2025). Trina Solar sets world record for solar technology.

6. Fraunhofer ISE. (2024). Oxford PV and Fraunhofer ISE develop full-sized tandem PV module with record efficiency of 25 percent.

7. Largue, P. (2024). Oxford PV achieves 25% efficiency record for solar panels. Enlit World.

8. Peplow, M. (2023). A new kind of solar cell is coming: Is it the future of green energy? Nature.

9. SNEC PV / Solar RRL. (2023). Four-terminal flexible perovskite–CIGS tandem mini-module with 18.4% efficiency.

10. Innovations-Report. (2025). Record efficiency of 18.7 percent flexible CIGS solar cells.

11. ETIP PV. (Roadmap). Thin-film (non-perovskite) PV modules – Roadmap 3.

12. Schachinger, M. (2024–2025). PV module price index and European wholesale prices.

13. PV-Tech. (2020). Tiger Module Technology White Paper (multi-busbar + tiling ribbon).

14. Sunterra Solar. (2022). Tiling Ribbon Technology (TR) explainer.

15. Terli / Sunevo Solar. (2024–2025). Multi-busbar (MBB) solar cell and panel design notes.

16.  EurekAlert: News release 2020
